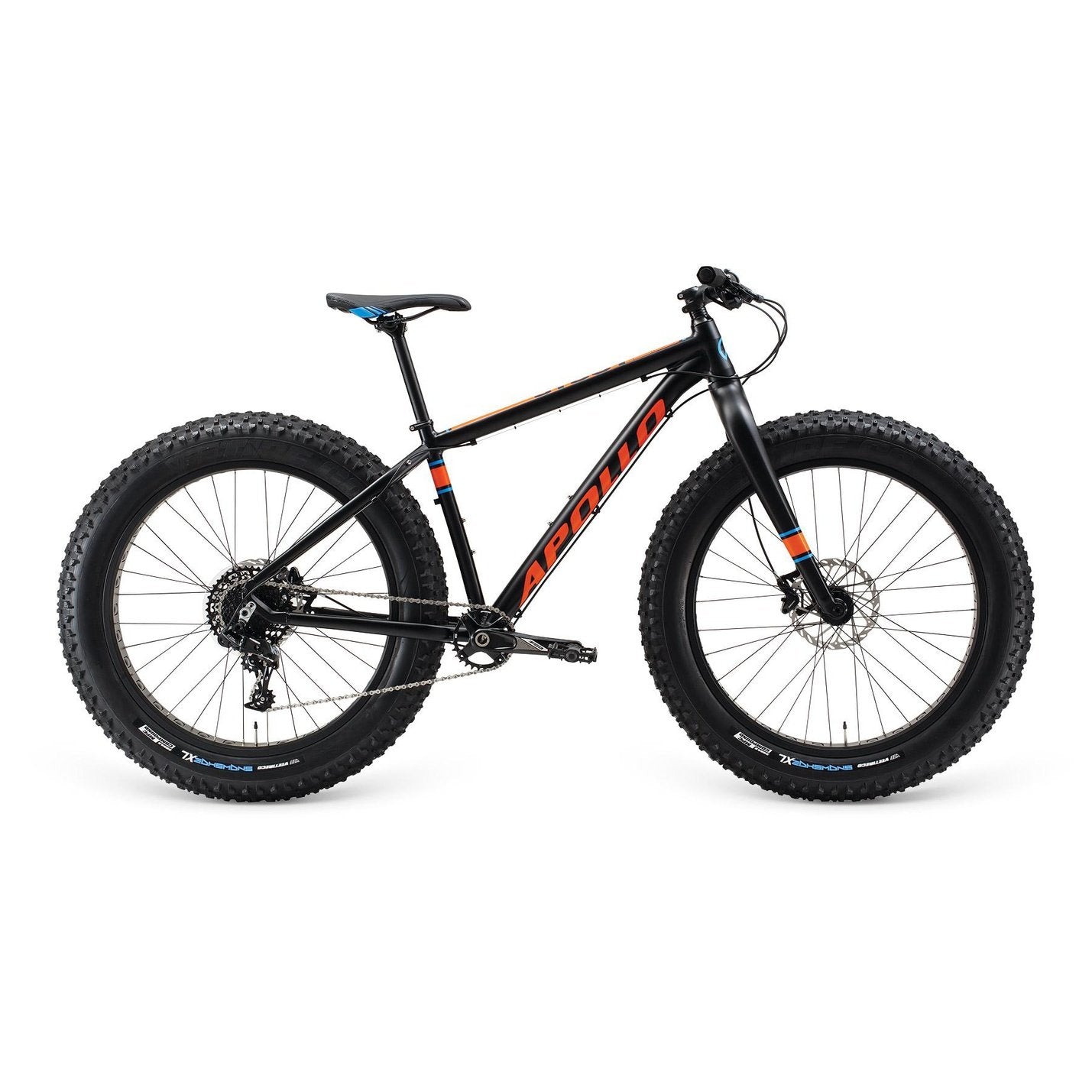

Apollo Stout 20 Mat Black/Mat Orange/Mat Blue

26" Fat bike - 20 speed

• Apollo's alloy Fat frame tapered head tube, with 12mm thru axle rear.
• Apollo's formed alloy fat bike fork, with 15mm axle and tapered steer tube.
• Veetire 26" x 4.8" Snow Shoe Fat tyres.
• SRAM NX 1 x 11 speed shifting with FSA COMET 30T crank.
• SRAM Level hydraulic disc brakes 180mm front and 160mm rear.

FRAME
Triple butted 6061 alloy Fat bike frame. Tapered 1-1/8 to 1.5 head tube. 12x142mm dropout, direct mount front derailleur

FORK
Apollo 26" Fatty fork, full alloy with tapered 1-1/8-1.5 steerer

HANDLEBAR
A-head semi integrated, for tapered 1.8-1.5 head tube, cartridge bearings with 8mm cone spacer

HEADSET
Factor butted alloy flat bar bore: 31.8mm W: 700mm, sweep: 9

GRIP
Ultra light hex shaped foam racing grips

HEADSTEM
Factor 31.8mm 4 bolt stem, Ext: S/M=75mm, L=90mm,

CRANKSET
FSA COMET fat bike specific, 11 speed 30T L: M/L=175mm

BOTTOM BRACKET
FSA 100mm sealed cartridge bottom bracket

PEDALS
Low profile high impact resin

FRONT DERAILLEUR
N/A

REAR DERAILLEUR
SRAM NX 11 speed

SHIFT LEVERS
SRAM NX 11 speed

CASSETTE
SRAM 11 speed cassette 11 - 42T

CHAIN
KMC-X11

BRAKES
Sram Level hydraulic disc brakes, 180mm rotors

WHEELS
26" Alloy disc specific rims with square holes for reduced weight, 32 hole F/V, anodised disc hubs and stainless spokes

TYRES
26 x 4.8" Snowshoe XL 72 TPI

SADDLE
Factor MTB sport saddle

SEATPOST/CLAMP
Factor 27.2mm alloy, micro adjust with twin bolt head, L:400mm

EXTRAS
N/A
