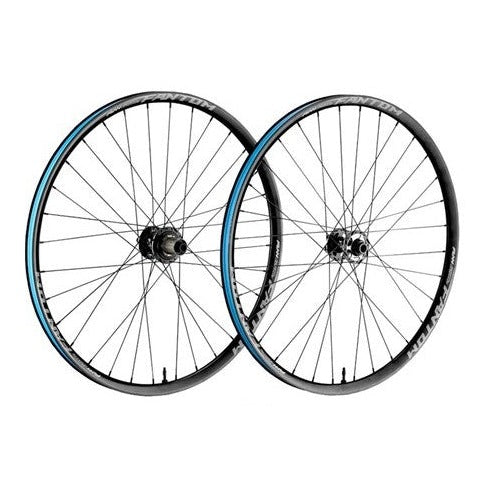

FUNN Fantom AM30 - 27.5 inch Shimano HG Spline (BOOST)
FUNN Fantom AM30 - 27.5 inch Shimano HG Spline (BOOST)
SKU:FROMSBC-PWS18A3002732F3R4S-01
Couldn't load pickup availability
Lightning-fast wheels. (XC and Trail Use)
The Fantom AM30 is for the trail and XC riders. Designed to be lightweight and fast-rolling with a 30mm external/25mm internal width for the perfect balance of speed and control.
Funn Fantom wheelsets are the complete package, pairing Funn Fantom hubs and rims to create a lightweight, tough and fast wheel for everything from downhill to trail to gravel. Our wheels are available in 27.5″ and 29″.

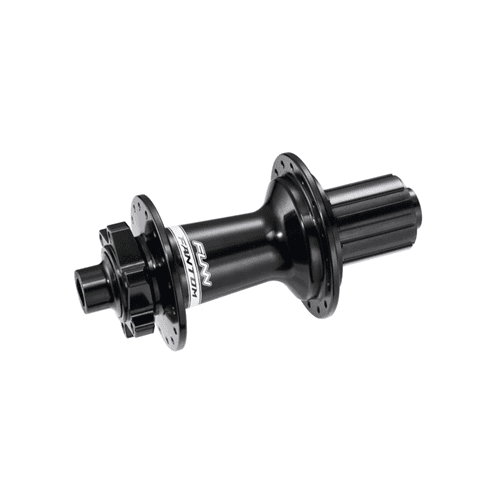

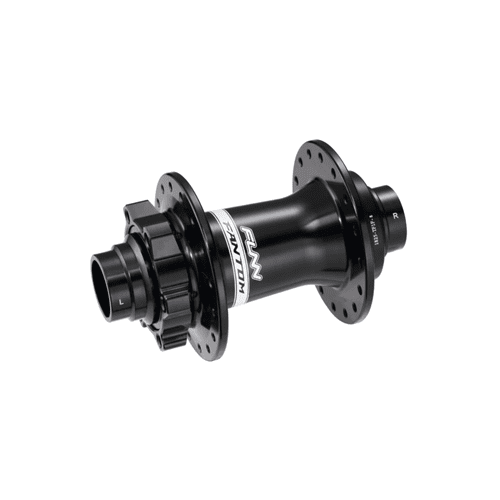

The Fantom hub is precision-engineered from AL6061 with a quick-engagement 6 pawl and 102T design.
The Fantom rim is a lightweight design, made from welded AL6066 with a sandblasted black anodised finish.
Fantom wheels are tubeless-ready and come supplied with tubeless rim tape and valves.
| Intended use | Gravel / Trail / XC |
| Tubeless-ready | Supplied with tubeless tape and 2 x valves |
| Available sizes | 27.5″ | 29″ |
| Weight | 1835g (Boost) | 1905g (Boost) |
| Spoke count | Front 32H Rear 32H |
Front 32H Rear 32H |
Funn Fantom Rim
| Valve standards | Presta |
| Axle standard front | 15x110mm |
| Axle standard rear | 12x148mm |
| Rim width external | 30mm |
| Rim width internal | 25mm |
| Rim depth | 23mm |
| Rim eyelet | No |
| Rim material | Welded 6066 Alloy |
| Finish | Sandblasted Anodized Black |
| ETRTO | 84×30 | 622×30 |
| ERD | 557mm | 594mm |
Funn Fantom Hub
| Engagement | Fantom 102T quick engagement |
| Cassette body | Shimano HG / SRAM XD / Shimano Micro Spline |
| Hub body | 6061 Alloy |
| Compatibility | Cassette body is convertible between Shimano and SRAM standards. |
| Butting | Double-butted |
| Spoke count | 32h each wheel |
| Nipple | Brass |
